analytical services

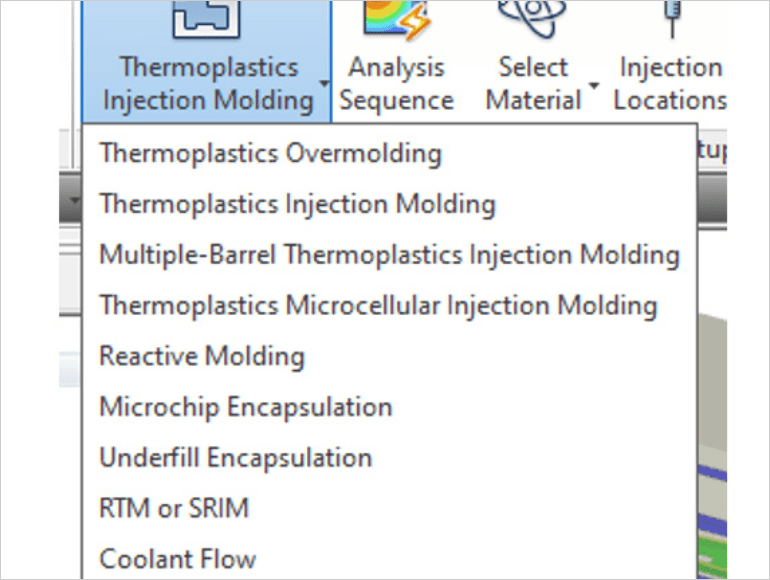

 analysis capabilities


  • INJECTION MOLDING FLOW ANALYSIS
  • RUNNER BALANCING
  • COOLING CIRCUIT ANALYSIS
  • SHRINKAGE & WARPAGE PREDICTION
  • CORE DEFLECTION
  • INSERT MOLDING
  • RIM ANALYSIS
  • MICROCHIP ENCAPSULATION
  • DYNAMIC FEED
  • Fill Analysis with Blowing Agent (Microcellular Injection Molding)
  • Traditional Cooling (BEM and FEM)
  • Conformal Cooling (FEM)
  • 2-Shot Overmolding
  • 2-Shot Overmolding with Cooling (FEM)
  • Dynamic valve pin timing/adjustment i.e. Synflow™, FLEXflow™

*NOTE: Boundary Element Method (BEM), Finite Element Method (FEM)

WE UTILIZE THE LATEST VERSION OF AUTODESK SIMULATION MOLDFLOW INSIGHT

The above list is shows commonly performed analyses in the industry.

client goals


WE ARE LISTENING.



The most important question to discuss with our Clients are the goals for each project.

We make the effort to thoroughly  examine the project details, timeline, and other pertinent information to ensure we have a clear scope of understanding  prior to beginning the analysis process.

Once a project is underway, communication continues with Web Meetings to dynamically show current results, discuss options available based on results, and implement any changes necessary to stay on track with project goals.

Quote Request

analysis goals


  • PROPER MATERIAL SELECTION
  • FEED SYSTEM OPTIMIZATION
  • COOLING SYSTEM OPTIMIZATION
  • CYCLE TIME PREDICTION
  • CYCLE TIME REDUCTION
  • OPTIMIZATION OF PROCESS PARAMETERS
  • PART DESIGN OPTIMIZATION FOR INJECTION MOLDING
  • INJECTION MOLD OPTIMIZATION
  • DEFINING ‘PART QUALITY’
  • OPTIMIZE ‘PART QUALITY’ VIA PROPRIETARY PROCESS

The above list reflects on common goals for part design and projects

WE ACCEPT THE MOST NATIVE CAD FILES AS WELL AS PARASOLID, STEP, AND IGES FILES
